MICRO TOOL

DIAengraving

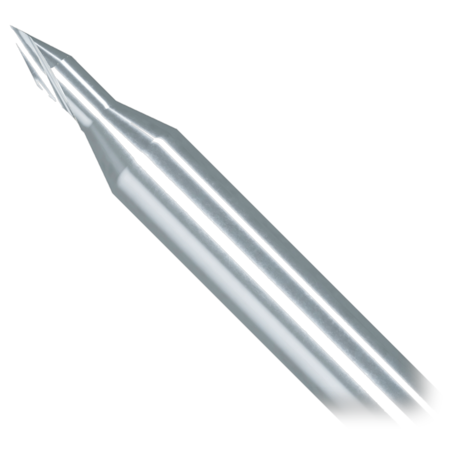

Complete solutions for engraving: solid carbide engraving end mills with point angles from 30° to 120° and tip widths from 0.05 to 0.20 mm, uncoated or DWS coated.

Download the complete catalogue

27ce1418-a415-4d20-8194-cf021e2b739d
DIAENGRAVING

Applications

All DIAengraving end mills in the catalogue, by tip geometry.

MI0522-NR01101
4b415119-a56a-4cdf-8249-35bd434a2b5b

Engraving end mill 1/2 with flat

Half-section geometry with a flat tip from 0.05 to 0.20 mm and point angles from 30° to 120°, on a Ø 3 mm shank.

Learn more
MI0521-NR01101
1e066df3-7332-4bbf-bb79-394ef80a7e49

Engraving end mill 3/4 with flat

Three-quarter section with a flat tip from 0.05 to 0.20 mm and point angles from 30° to 90°.

Learn more
MI0523-NR01101
1b5c50ca-daac-4d4d-a6bf-40d5e2d18e1c

Engraving end mill 3/4 with radius

Three-quarter section with a 35° point angle and a tip radius from 0.05 to 0.20 mm.

Learn more
MI0525-NR01101
81a6be73-7be1-479b-995f-63d7404f5b5e

Helical engraving end mill with flat

Helical cutting edge with a flat tip from 0.05 to 0.15 mm and point angles from 30° to 60°.

Learn more


The complete DIA ENGRAVING catalogue

Applications, dimensions, cutting data and article numbers for the entire DIA ENGRAVING range.

Download the catalogue

TECHNICAL INFORMATION

Codification and machined materials

 DIAengraving codification and applications chart, by ISO material group, to choose the right engraving end mill for your part.
